Essl F22 + Software 1 Year

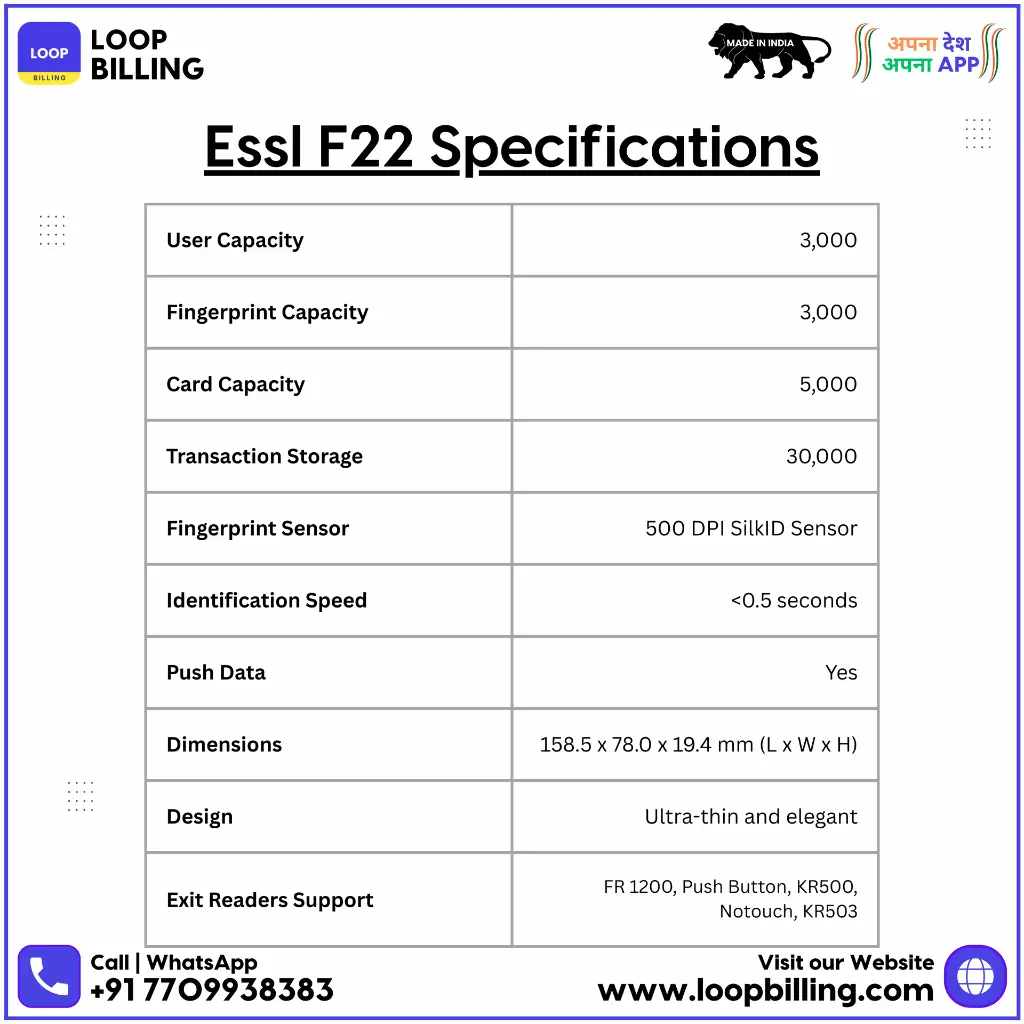

User Capacity: 3,000

Fingerprint Capacity: 3,000

Card Capacity: 5,000

Transaction Storage: 30,000

Fingerprint Sensor: 500 DPI SilkID Sensor

FAR (False Acceptance Rate): ≤0.0001%

FRR (False Rejection Rate): ≤1%

Identification Speed: <0.5 seconds

Algorithm Version: VX10.0

CPU: 32-bit Microprocessor

Coreboard: ZLM60

Display: 2.8" TFT Color Screen

Keypad: Touch Keys

LED Indicator: Green/Red

Communication: RS232/485, TCP/IP, USB-host, Built-in Wi-Fi

Wiegand: In & Out

Push Data: Yes (Support both static IP and domain server)

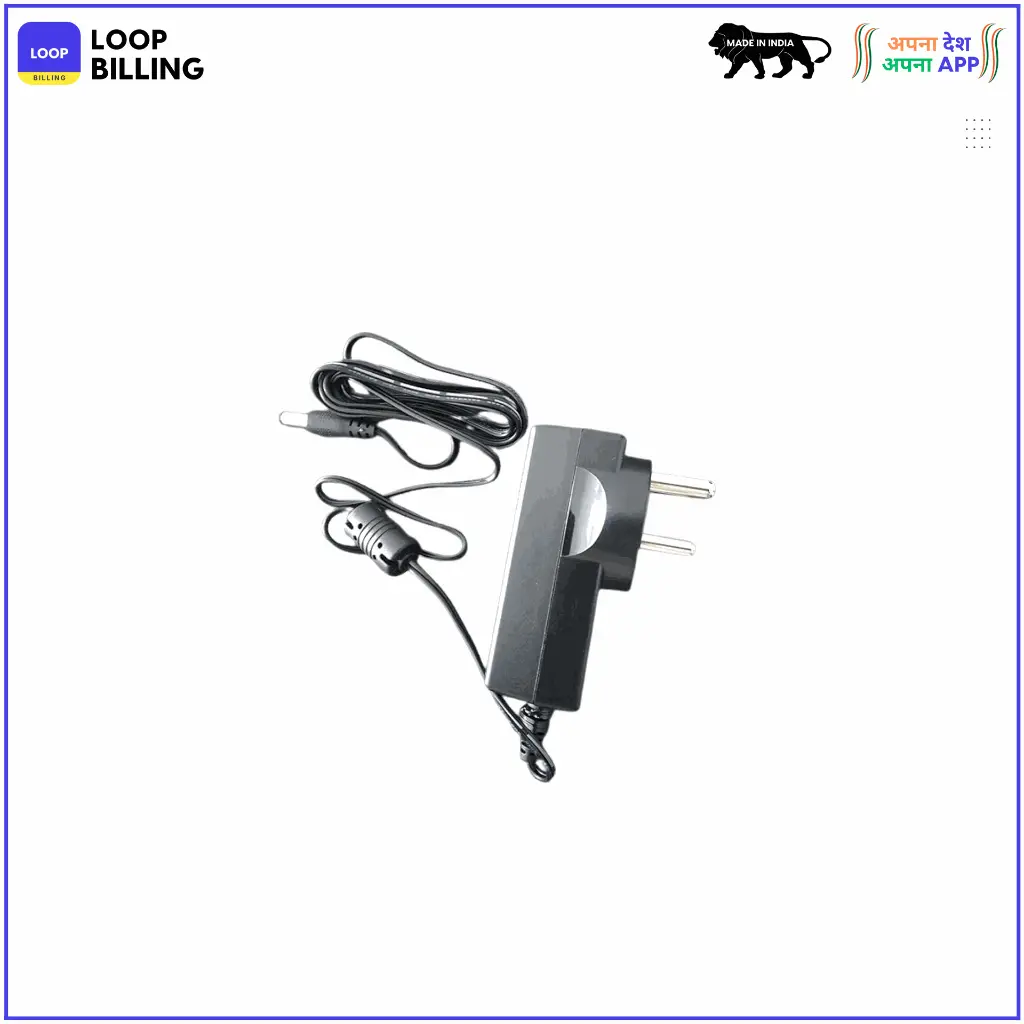

Power Supply: DC 12V, 1.5 Amp

Operating Temperature: 0°C to 45°C

Operating Humidity: 20% - 80%

Dimensions: 158.5 x 78.0 x 19.4 mm (L x W x H)

Weight: 500g

Design: Ultra-thin and elegant

Standard Features: Work code, SMS, DLST, Self service query, Status Switch

Standard Functions: DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback

Exit Readers Support: FR 1200, Push Button, KR500, Notouch, KR503

Access Control Features: Anti-passback, 3rd party electric lock interface, door sensor, exit button, alarm

Card Support: Mifare (Optional)

Verification Modes: Multiple verification methods (Fingerprint, Card, Password)

Compatible Software: eTimeTracklite Desktop & Web

Additional Features: Built-in auxiliary input, enhanced flexibility for wired detector or emergency switch
